Aluminum fittings selection guide for material, finish, and corrosion control

Why aluminum fittings need a specification-first approach

Aluminum is often chosen for fittings because it is lighter than steel, easy to form or machine, and protected to some degree by its natural oxide surface. Those benefits are useful, but they do not define a reliable part on their own. Aluminum fittings still need to be specified by alloy, temper, manufacturing route, finish, load case, and service environment. A cast decorative bracket, an extruded frame connector, a forged lifting-related part, and a machined fluid adapter may all be described as aluminum fittings, but they do not belong under the same standard or inspection plan.

This guide helps buyers, engineers, and sourcing teams specify aluminum fittings without relying on broad terms such as “industrial grade” or “heavy duty.” It focuses on material selection, finish options, galvanic corrosion control, and practical procurement checks for metal fittings.

Start by defining what the fitting must do

The first question is not which alloy is popular. It is what the fitting has to connect, carry, seal, locate, or protect. Aluminum is used in many fitting categories, including frame corners, pipe and tube adapters, rail brackets, panel connectors, conduit accessories, furniture hardware, lighting hardware, marine accessories, and machinery guards. Each category carries a different level of risk.

A non-structural trim fitting mainly needs consistent dimensions, acceptable appearance, and a finish that will survive its environment. A frame connector may need stiffness, fatigue resistance, bolt-hole strength, and repeatable tolerances. A fluid or pneumatic fitting may need controlled thread quality, sealing geometry, pressure rating, and compatibility with the medium. An outdoor fitting has to be reviewed for rain, salt, cleaning chemicals, ultraviolet exposure, and contact with other metals.

A useful specification should answer five basic questions before a supplier is selected:

• What load, pressure, vibration, or impact will the fitting experience?
• Will the part be used indoors, outdoors, in a marine area, or near chemicals?
• Does the fitting need to be welded, bolted, threaded, press-fit, or bonded?
• Is appearance important, or is the finish mainly for corrosion protection?
• Which inspection documents are needed, such as material certificates, coating reports, or dimensional checks?

Answering these questions early reduces the risk of choosing an alloy or process that looks acceptable on a drawing but causes problems during assembly or service.

Match the fitting to the manufacturing route

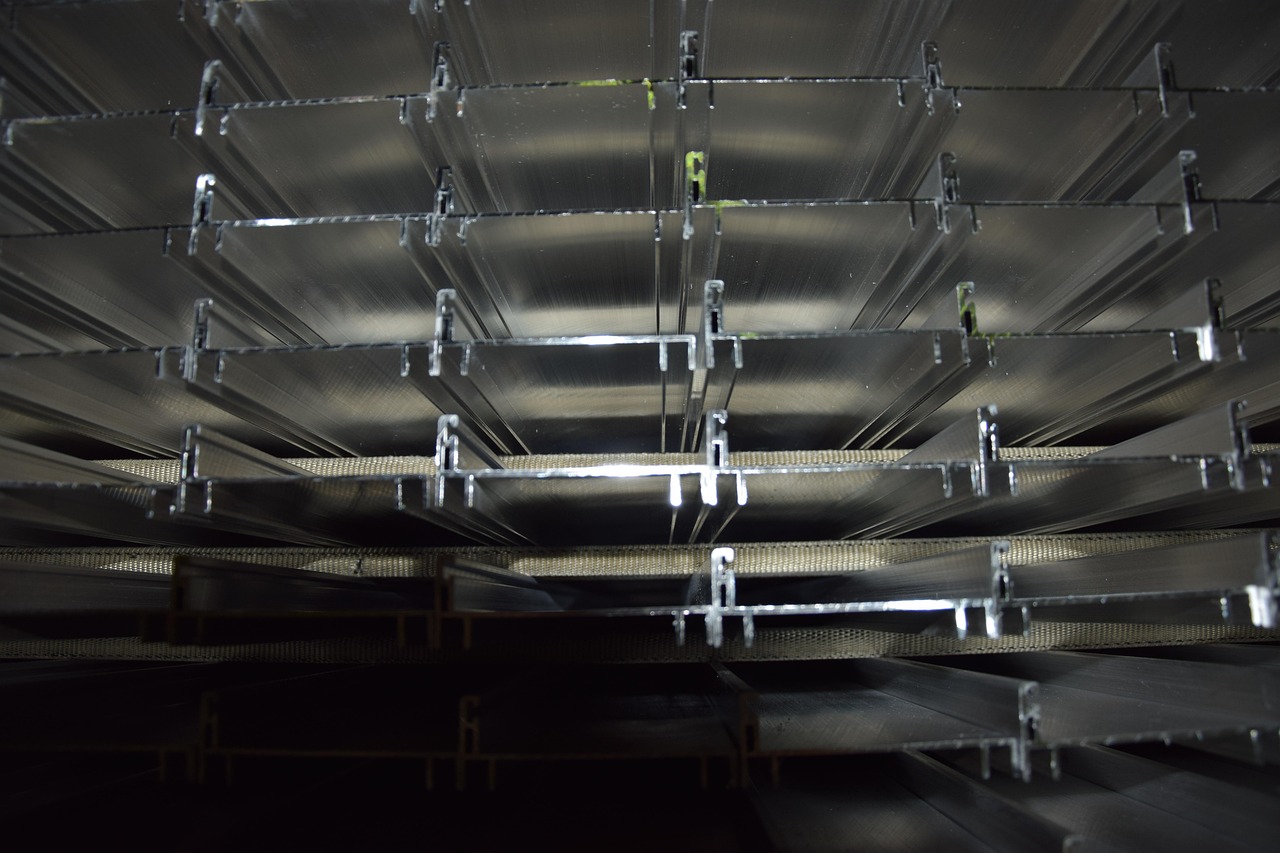

Aluminum fittings can be extruded, cast, forged, machined from bar or plate, welded from multiple pieces, or produced by a combination of these methods. The process affects grain structure, porosity risk, dimensional capability, surface appearance, cost at volume, and the standards that may apply.

Manufacturing route	Where it is commonly useful	Specification focus	Standards or source areas to check
Extrusion	Frame connectors, channels, rails, tube-related fittings, profiles with repeated cross-sections	Alloy, temper, profile tolerance, wall thickness, straightness, cut length, hole position after machining	ASTM B221 for extruded bars, rods, wire, profiles, and tubes; Aluminum Association tolerance data
Die casting	Complex shapes, decorative hardware, housings, high-volume non-critical geometry	Porosity, draft, wall thickness, surface finish, coating adhesion, threaded insert design	ASTM B85 for aluminum-alloy die castings
Sand or permanent mold casting	Larger or lower-volume fittings, thicker forms, shapes not suited to extrusion	Soundness, machining allowance, heat treatment, leak testing if relevant	ASTM B26/B26M for sand castings and ASTM B108/B108M for permanent mold castings
Forging	Higher-strength parts, load-bearing lugs, rings, clamps, and fittings where flow lines and toughness matter	Alloy and temper, mechanical properties, hardness, stress-corrosion requirements, traceability	ASTM B247 for aluminum and aluminum-alloy forgings

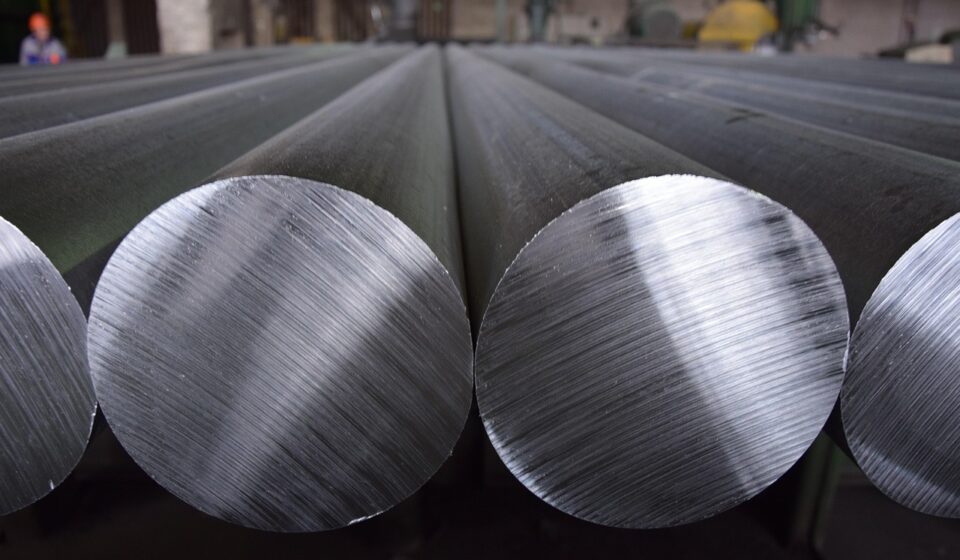

Machining from wrought stock	Threaded adapters, blocks, precision brackets, prototypes, lower-volume fittings	Stock standard, temper, surface roughness, thread form, burr control, anodizing allowance	Relevant wrought product standards such as extruded, rolled, or drawn material specifications

The main point is simple: a material callout alone is incomplete. “6061 aluminum” does not say whether the part is extruded, forged, machined from plate, welded, or cast. For repeatable quality, the purchase specification should identify both the alloy-temper and the product form.

Choose alloy and temper around load, environment, and fabrication

Aluminum alloy families are designed for different balances of strength, corrosion resistance, formability, machinability, weldability, and finish response. Public guidance from The Aluminum Association notes that aluminum properties such as strength, density, workability, electrical conductivity, and corrosion resistance are affected by alloying elements such as magnesium, silicon, and zinc. That is why the alloy family matters in fitting selection.

6xxx alloys for many extruded and architectural fittings

The 6xxx series, based mainly on magnesium and silicon additions, is widely used for extrusions, architectural components, frames, rails, brackets, and general-purpose machined fittings. These alloys typically offer a practical mix of extrudability, moderate strength, corrosion resistance, anodizing response, and weldability. For many non-aerospace fittings, 6061 and 6063 are common references, but the better choice depends on strength requirements, surface appearance, wall thickness, and supplier capability.

5xxx alloys for better corrosion resistance in many outdoor applications

Aluminum-magnesium 5xxx alloys are often considered when corrosion resistance and weldability are more important than heat-treated strength. They are commonly discussed for marine, transport, and sheet-related applications. For fittings that will be welded or exposed to moisture, the 5xxx family may be worth reviewing, especially where a copper-bearing high-strength alloy would introduce unnecessary corrosion concerns.

2xxx and 7xxx alloys for strength-sensitive uses with extra caution

The 2xxx and 7xxx families can deliver higher strength in certain tempers, but they require closer review for corrosion behavior, stress-corrosion risk, joining method, and finish system. They should not be selected only because “stronger” sounds safer. In many fittings, thread engagement, wall thickness, joint geometry, or fastener design is more important than maximum base-metal strength.

Cast alloys for shape efficiency, not automatic strength

Casting is useful when the fitting has ribs, bosses, curved housings, or integrated features that would be expensive to machine. However, cast aluminum parts must be reviewed for porosity, shrinkage, fatigue sensitivity, coating defects, and possible leak paths. If the fitting is pressure-retaining or safety-related, casting quality requirements should be written clearly instead of assumed.

Control corrosion through finish and joint design

Aluminum forms a natural oxide layer, but actual service environments can still cause pitting, crevice corrosion, filiform corrosion under coatings, and galvanic corrosion when aluminum contacts more noble metals in the presence of an electrolyte. ASM International corrosion references describe these corrosion forms for aluminum alloys, and military galvanic compatibility guidance such as MIL-STD-889 focuses on electrically conductive material couples in corrosive environments.

Anodizing

Anodizing builds a controlled oxide layer for decorative and protective purposes. ISO 7599:2018 specifies a method for specifying decorative and protective anodic oxidation coatings on aluminum and aluminum alloys. For fittings, the specification should state the coating class or thickness target, color if required, sealing requirement, inspection method, and whether machined threads or bearing surfaces must be masked.

Anodizing is not only an appearance decision. It can improve wear and corrosion performance in many conditions, but it also changes dimensions slightly and may crack if the part is later bent or heavily deformed. For precision fittings, coating buildup and masking need to be reflected in the drawing tolerance stack.

Powder coating and paint systems

Powder coating and paint can provide color, barrier protection, and improved outdoor appearance. These finishes are common on architectural fittings, brackets, rail accessories, and exposed hardware. Performance depends heavily on surface preparation, conversion treatment, coating thickness, edge coverage, curing, and adhesion. Sharp edges and poorly cleaned castings are frequent weak points, so drawings should include radius, cleaning, and coating acceptance requirements where appearance or corrosion life matters. See also: Buying Guides.

Galvanic corrosion control

Galvanic corrosion is a major concern for aluminum fittings installed with stainless steel, carbon steel, copper alloys, or conductive carbon materials in wet environments. The issue is not simply that two metals touch. It requires an electrical path and an electrolyte such as water, salt spray, condensation, or cleaning solution. Practical controls include insulating washers or sleeves, sealants, compatible coatings, drainage, avoiding trapped moisture, and designing the aluminum area large enough relative to more noble fasteners where the joint design permits.

Fastener choice should be documented. Stainless steel screws in aluminum may be acceptable in many indoor or lightly exposed applications, but the same combination can require isolation and sealing in marine, coastal, chemical, or continuously wet service. If the fitting is part of electrical equipment, corrosion control must also be balanced with grounding or bonding requirements.

Do not overlook dimensions, threads, and inspection

Many fitting failures start with details that are not visible in a short material description. Aluminum is softer than many steels, so threaded holes, bearing surfaces, press fits, and repeated assembly cycles deserve attention. If a fitting will be removed often, thread inserts or longer engagement may be needed. If a bolt clamps through an aluminum bracket, washer size, bearing stress, and surface finish can affect joint life.

For procurement, the drawing or purchase order should define:

• Alloy and temper, not only the word aluminum.
• Product form or process, such as extrusion, die casting, forging, or machined plate.
• Applicable material standard and any required certificate of conformity.
• Critical dimensions, datum scheme, thread standard, and gauge requirements.
• Surface finish, coating type, color, sealing, masking, and coating inspection.
• Deburring and edge-break requirements, especially near cable, hose, or hand-contact areas.
• Load rating, pressure rating, or engineering approval if the fitting is safety-related.
• Packaging requirements to prevent scratches, water staining, and contact corrosion during transit.

For pipe, tube, or fluid fittings, pressure service needs special care. ASTM B221 public scope information notes that listed pipe and tube products are intended for general-purpose applications and may not address the manufacturing processes, integrity testing, and verification required for pressure fluid-carrying applications. In other words, a general aluminum tube or profile standard is not a substitute for a pressure-rated fitting specification, leak test, or applicable piping code.

Where aluminum fittings may not be the right choice

Aluminum is versatile, but it is not the default answer for every fitting. Steel may be better where very high stiffness, small cross-sections, high wear resistance, or low material cost is the main driver. Stainless steel may be better in aggressive chemical exposure, food-contact cleaning regimes, or high-temperature environments. Brass or bronze may be preferred for certain plumbing, bearing, or electrical applications. Engineering plastics may be useful where electrical insulation, low friction, or chemical resistance outweighs metal strength.

Aluminum also has temperature limits, lower modulus than steel, and potential thread wear under repeated assembly. Welded aluminum fittings can lose strength in heat-affected zones depending on alloy and temper. Structural designs should use recognized references such as the Aluminum Association’s Aluminum Design Manual and should be reviewed by qualified professionals when public safety, building compliance, lifting, pressure containment, or moving machinery is involved.

A practical selection checklist

For a clear, supplier-ready aluminum fitting specification, use the following sequence:

1. Define the function: connecting, sealing, locating, supporting, protecting, or decorating.
2. Classify the risk: cosmetic, general mechanical, pressure-retaining, electrical, structural, or safety-related.
3. Select the process: extrusion, casting, forging, machining, welding, or assembly.
4. Choose alloy and temper based on strength, corrosion, weldability, finish, and availability.
5. Specify the finish: mill, anodized, conversion coated, painted, powder coated, or plated where appropriate.
6. Review dissimilar-metal contact and add insulation, sealant, drainage, or coating where moisture may be present.
7. Control critical dimensions, thread quality, deburring, coating buildup, and packaging.
8. Request inspection evidence matched to risk, rather than asking for every document on every low-risk fitting.

This approach creates a stronger purchasing document than a broad phrase such as “custom aluminum fitting.” It also helps compare quotations fairly because each supplier is pricing the same alloy, process, finish, tolerance, and inspection level.

Frequently asked questions

Are aluminum fittings strong enough for structural use?

They can be, but only when the alloy, temper, section geometry, connection design, fasteners, welds, and load cases are engineered together. Aluminum has lower stiffness than steel, so deflection can govern even when strength appears adequate. Structural fittings should be designed using recognized aluminum design rules and reviewed by a qualified engineer.

Is anodized aluminum always better than powder coated aluminum?

No. Anodizing can provide a durable oxide finish and a metallic appearance, while powder coating can offer broader color options and barrier protection. The better choice depends on exposure, appearance, abrasion, edge coverage, dimensional tolerance, and maintenance expectations.

Can stainless steel fasteners be used with aluminum fittings?

Often yes, especially indoors, but the joint should be reviewed for galvanic corrosion when moisture or salt is present. Isolation washers, sealants, suitable coatings, drainage, and controlled fastener area can reduce risk. The more severe the environment, the more important it is to document the corrosion-control method.

What is the most common aluminum alloy for fittings?

There is no single best alloy for all fittings. Many extruded and machined general-purpose fittings use 6xxx alloys such as 6061 or 6063, while cast fittings use casting-specific alloys and standards. The correct choice depends on process, load, finish, and environment.

Do aluminum fittings need material certificates?

For cosmetic or low-risk hardware, a basic certificate may be enough. For structural, pressure-related, safety-related, or regulated applications, buyers should request traceable material certificates, coating reports, dimensional inspection, and any required test records defined in the purchase specification.
