PCB finishes explained for reliable soldering and assembly

What PCB finishes do and why the choice matters
PCB finishes are the final coatings applied to exposed copper pads, holes, and contact areas after solder mask processing. Their job is straightforward but critical: keep copper solderable until assembly and, in some designs, provide a contact or bonding surface. The wrong finish can lead to uneven pads, storage sensitivity, poor wetting, connector wear, or reliability concerns that may appear only after reflow, press-fit insertion, or field use.
For most boards, there is no universally superior finish. The right choice depends on component pitch, assembly temperature, shelf life, handling conditions, compliance needs, cost, and whether the same surface must also support wire bonding or repeated contact.

For more articles in this topic area, see the Surface Finishes section.
The main PCB finishes used in production
Most fabrication drawings specify one of several established finishes. Industry documents commonly referenced for these choices include the IPC-4550 family for specific finishes and IPC-J-STD-003D for printed board solderability testing. These standards matter because a finish name alone does not define deposit thickness, test method, durability expectation, or acceptance criteria.
| Finish | Basic structure | Typical strengths | Main limits |
|---|---|---|---|
| HASL and lead-free HASL | Solder coating over copper, leveled with hot air | Established solderability history, familiar process, economical for many through-hole and general-purpose boards | Less planar than immersion or organic finishes; not ideal for very fine pitch, dense BGA, or some high-density SMT work |
| OSP | Organic solderability preservative directly on copper | Very flat, low cost, lead-free compatible, no nickel layer | Handling and storage sensitive; usually less tolerant of repeated thermal cycles and rework than metallic multilayer finishes |
| ENIG | Electroless nickel with a thin immersion gold layer | Flat pads, good oxidation protection, widely used for SMT and BGA assemblies | Higher cost than simple finishes; nickel corrosion defects can occur if the process is poorly controlled |
| ENEPIG | Electroless nickel, electroless palladium, immersion gold | Supports soldering and many wire-bonding requirements; useful for mixed-function surfaces | More expensive and process-intensive than ENIG or OSP |
| Immersion silver | Thin silver coating directly on copper | Flat, solderable, nickel-free, often considered for RF-sensitive layouts | Sensitive to sulfur, chlorides, fingerprints, packaging, and tarnish control |
| Immersion tin | Tin coating directly on copper | Flat, solderable, suitable for certain press-fit and fine-pitch needs | Copper-tin intermetallic growth affects shelf life; handling and storage control are important |
| Selective hard gold | Electrolytic nickel and hard gold on selected contact areas | Wear resistance for edge fingers, switches, and mating contacts | Usually specified selectively, not as a blanket solderable finish for all pads |
How each finish affects assembly risk

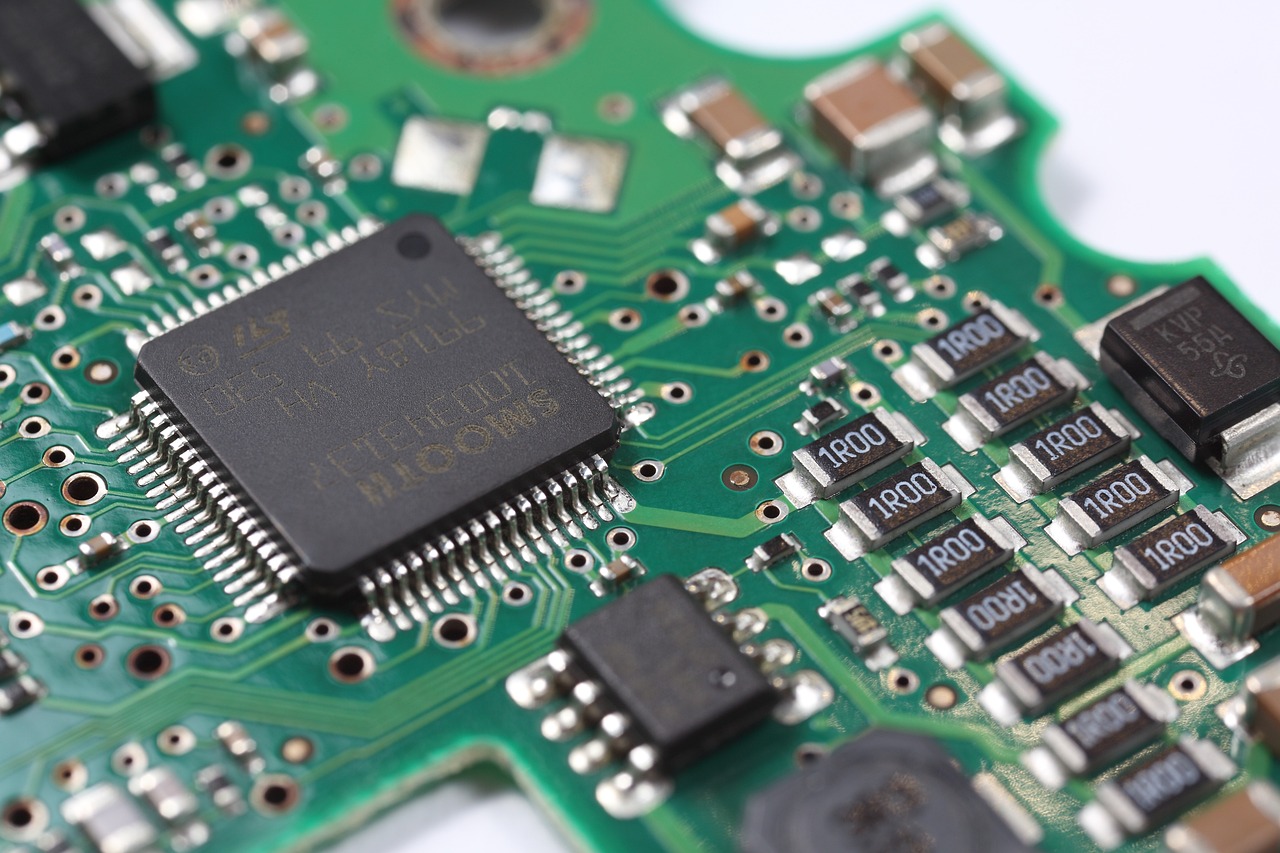

Planarity and fine-pitch components
Pad flatness becomes more important as components move from large through-hole parts to QFNs, LGAs, CSPs, and BGAs. HASL can leave a domed solder surface because the coating is formed by dipping the board into solder and leveling it. That is acceptable in many general designs, but it can reduce process margin when solder paste volume and coplanarity are tightly controlled.
OSP, ENIG, ENEPIG, immersion silver, and immersion tin are generally flatter because they form thin coatings rather than a visible solder layer. This is why fine-pitch SMT and BGA designs often move away from HASL. Even so, the finish still needs to match the assembler’s stencil design, paste alloy, reflow profile, and inspection criteria. A flat finish improves the starting condition, but it does not automatically guarantee yield.
Solderability and storage
All solderable finishes are intended to protect copper until assembly, but they do not age in the same way. OSP protects copper with an organic film and is often selected for cost-sensitive, high-volume SMT builds where boards move quickly from fabrication to assembly. Immersion silver and immersion tin can solder well, but their storage and packaging sensitivity should be managed carefully. ENIG and ENEPIG provide stronger oxidation protection because the outer gold layer protects the nickel-based barrier until soldering.
IPC-J-STD-003D is important here because it frames solderability as a tested surface condition. It also makes clear that solderability testing does not replace full assembly process validation. In practice, finish selection should be paired with controls for storage duration, humidity exposure, packaging, operator handling, and number of reflow cycles.
Reflow temperature and lead-free assembly
Lead-free soldering generally exposes boards to higher peak temperatures than older tin-lead assembly. That is one reason lead-free HASL, high-temperature OSP, ENIG, ENEPIG, immersion silver, and immersion tin are commonly considered in modern specifications. If the product must comply with RoHS-type restrictions, traditional leaded HASL is usually avoided unless a specific legal exemption applies.
The finish should not be evaluated in isolation. Laminate Tg, copper weight, component moisture sensitivity, board thickness, thermal mass, and the assembler’s reflow profile all influence reliability. A finish that works well on a thin two-layer board may not behave the same way on a thick, high-copper backplane or a dense assembly with multiple reflow passes.
Choosing between ENIG, ENEPIG, OSP, immersion silver, and immersion tin
When ENIG is a practical default
ENIG is widely used because it combines flatness, oxidation resistance, and broad assembly compatibility. It is a practical choice for many SMT boards, BGA packages, and products that may sit in inventory before assembly. IPC-4552B defines ENIG requirements, and the finish is commonly specified on fabrication drawings when designers want a more controlled alternative to HASL.
The main caution is process quality. ENIG relies on a controlled electroless nickel layer and a thin immersion gold layer. If the nickel surface is attacked during processing, solder joint reliability can be affected. This failure mode is often discussed in the industry as nickel corrosion or black pad risk. The lesson is not to avoid ENIG automatically, but to specify the finish clearly and use a qualified fabricator with appropriate bath control, thickness measurement, and acceptance testing.
When ENEPIG adds value
ENEPIG adds a palladium layer between nickel and gold. IPC-4556 describes ENEPIG as a surface finish for soldering, wire bonding, and contact finish applications. That makes it useful when one printed board must support more than ordinary soldered SMT pads. Examples include assemblies that combine soldered components with gold wire bonding, aluminum wire bonding, or mixed interconnect requirements.
The trade-off is cost and complexity. ENEPIG is not usually selected just to improve board appearance. It should be chosen because the design needs its functional range, because the risk of a simpler finish is higher, or because a customer specification requires it.
When OSP is the efficient choice
OSP is often attractive for high-volume, cost-sensitive boards because it is flat, lead-free compatible, and simple in structure. IPC-4555 covers high-temperature OSP for lead-free soldering, and the finish is typically used as a solderable surface rather than a wear-resistant contact finish.
The main limitation is durability before and during assembly. OSP can be more sensitive to fingerprints, storage environment, and repeated heating. If a board will go through several reflow cycles, selective soldering, hand rework, or long inventory storage, the assembler should confirm whether OSP still provides enough solderability margin. See also: Buying Guides.
When immersion silver or immersion tin fits better
Immersion silver is flat and nickel-free, which can make it worth reviewing for certain high-frequency layouts where nickel-bearing finishes need closer evaluation. It also provides good solderability when packaging and handling are controlled. The concern is tarnish and contamination. Sulfur-bearing environments, poor packaging, and direct handling can reduce solderability margin.
Immersion tin is also flat and solderable. IPC-4554 defines immersion tin plating for printed circuit boards, and the finish has been used in soldering, press-fit, and some zero-insertion-force connector contexts. Its limitation is that tin and copper interact over time. Intermetallic growth gradually consumes usable tin, so shelf life, deposit thickness, storage, and solderability testing should be part of the specification conversation.
Specification details that prevent finish-related problems
A clear fabrication note reduces ambiguity. Instead of writing only “gold finish” or “lead-free finish,” the drawing should identify the actual finish and the applicable standard where appropriate. For example, a drawing may specify ENIG to IPC-4552B, immersion silver to IPC-4553A, immersion tin to IPC-4554, OSP to IPC-4555, or ENEPIG to IPC-4556. The exact revision and any customer-specific exceptions should be agreed with the fabricator and assembler.
Important details to define include:
- The selected finish and whether it applies to all exposed copper or only selected areas.
- Reference standard, revision, and any agreed deviations.
- Required deposit thickness range or acceptance basis where the standard does not fully define the application need.
- Whether the board must support soldering only, press-fit insertion, edge contact wear, or wire bonding.
- Expected storage period before assembly and required packaging controls.
- Number of reflow cycles, selective soldering steps, and likely rework exposure.
- RoHS or other material compliance requirements.
Selective finishes should be handled with extra care. A board may use ENIG on SMT pads and hard gold on edge fingers, or OSP on solderable pads with a separate contact plating on connector areas. These combinations are common, but they require clear drawing boundaries and inspection expectations. Ambiguity at the boundary between solderable areas and contact areas can create disputes during incoming inspection.
A practical decision path for PCB finishes
For a simple consumer or industrial control board assembled soon after fabrication, OSP or lead-free HASL may be adequate if component pitch allows it. For fine-pitch SMT, BGA, or assemblies that require a flatter and more storage-tolerant surface, ENIG is often a practical candidate. For boards that require both soldering and wire bonding, ENEPIG deserves early consideration. For RF designs where nickel may affect loss or impedance behavior, immersion silver or OSP may be evaluated, but the decision should be checked against the stackup, frequency, geometry, and assembly process rather than made from a rule of thumb.
For press-fit connectors, immersion tin may be considered, but the mechanical and storage requirements should be reviewed with the connector supplier and board fabricator. For edge-card contacts or surfaces that experience repeated mating cycles, selective hard gold is generally more appropriate than a normal solderable finish.
The safest workflow is to choose the finish before releasing the fabrication package, not after receiving a price quote. Finish choice affects pad geometry assumptions, solderability testing, material compliance, packaging, handling, and sometimes signal integrity. Changing it late can require drawing revisions, assembler approval, or new qualification builds.
Common mistakes to avoid
- Treating PCB finishes as cosmetic. Color and shine matter far less than solderability, flatness, storage stability, and contact performance.
- Using HASL on dense fine-pitch layouts without checking coplanarity risk. HASL is useful, but it is not always the right fit for small pads and tight pitch.
- Specifying ENIG without process controls. ENIG is reliable when well controlled, but poor nickel-gold processing can create serious solder joint risk.
- Choosing OSP for long storage without controls. OSP can be efficient, but it requires disciplined handling and assembly timing.
- Ignoring the real function of the surface. A solderable finish, a wire-bondable finish, and a wear-resistant contact finish are not the same requirement.
- Leaving the standard out of the drawing. A finish name without a reference standard can lead to inconsistent thickness, testing, and acceptance expectations.
Frequently asked questions
Are ENIG and immersion gold the same thing?
In PCB manufacturing, ENIG means electroless nickel immersion gold. The gold is a thin protective layer over nickel, not a thick gold conductor. The nickel layer acts as the main diffusion barrier and solderable foundation after the gold dissolves during soldering.
Which PCB finish is best for BGA components?
There is no single best finish for every BGA. ENIG is commonly used because it is flat and storage tolerant, but OSP, immersion silver, immersion tin, and ENEPIG can also be suitable when the board design, assembly process, storage, and reliability requirements support them. Very uneven finishes should be reviewed carefully for fine-pitch BGA work.
Is OSP reliable enough for production boards?
Yes, OSP can be reliable in production when boards are handled correctly, stored properly, and assembled within the intended process window. It is less forgiving when boards face long storage, repeated reflow, contamination, or extensive rework.
Why is hard gold not used everywhere?
Hard gold is designed for wear-resistant contact surfaces such as edge fingers. It is more expensive than common solderable finishes and is usually applied selectively. Blanket use on solder pads is generally avoided unless the design has a specific, qualified requirement.
What should be written on a PCB fabrication drawing?
The drawing should state the finish, the applicable IPC or customer specification, the revision if required, selective plating boundaries, compliance requirements, and any storage or solderability expectations. Clear notes reduce disputes between design, fabrication, assembly, and quality teams.
